6905 2RS/ZZ/OPEN Bearing

6905 2RS/ZZ/OPEN Bearing

Item No.6905 2RS/ZZ/OPEN Bearing

 bearing fitness Equipment Electrical Motors
Clearance:According to client's requirment
Quality:P6 Z3V3, P5 Z4V4

Renhe Deep Groove Ball Bearing Specification

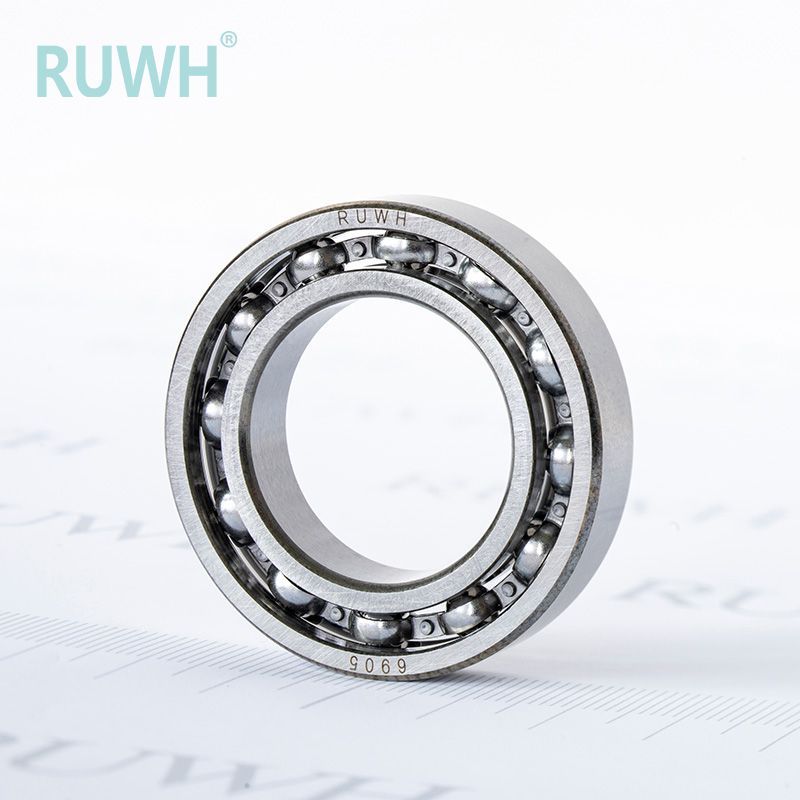

Deep groove ball bearings can withstand moderate axial loads and radial loads. Compared to other ball bearing types of the same size, the 6900 has a lower coefficient of friction and a higher speed rating. The 6900 series can be used to carry pure axial loads when thrust type ball bearings are not suitable due to high speeds. 6900 series is available in open, sealed or shielded configurations.

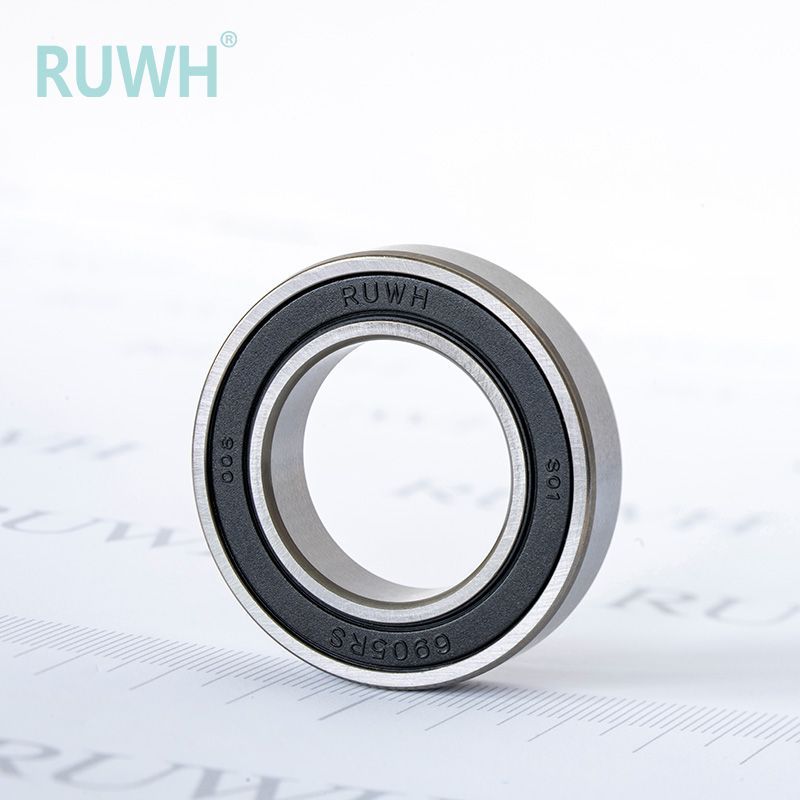

6905-2RS sealed ball bearings with 25mm inner diameter, 42mm outer diameter and 9mm width, the bearings are made of chrome steel and have 2 rubber seals per bearing to protect the bearings from dust or any possible contamination, these are self-lubricating bearings.

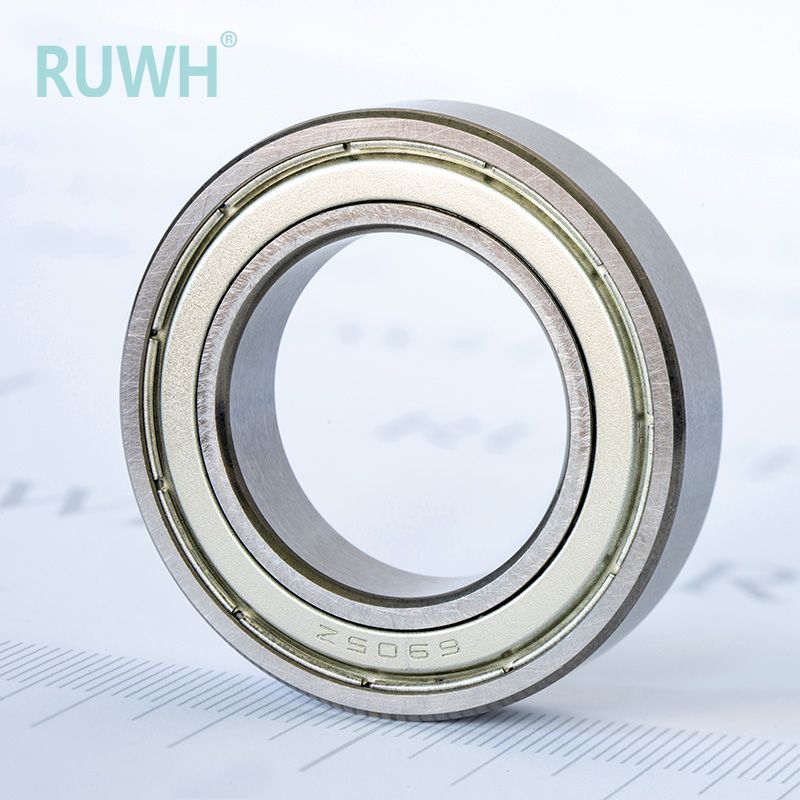

The 6905-2RS and 6905-ZZ are a 25mm ball bearing that can be found in many applications. 6905-2RS ball bearings have two contact rubber seals on each side of the ball bearing. 6905-ZZ ball bearings have two non-contact metal shields on each side of the ball bearing. If your application requires a 6905 ball bearing with only one seal or shield, you can obtain the ball bearing and remove one of the shields or seals. These 25 mm inch ball bearings are of high quality and can meet the needs of motors if required.

6905-2RS Ball Bearing Dimensions

Bearing size: 6905-2RS
Size (d): 25mm
Dimension (D): 42mm
Dimension (B): 9mm
Rated dynamic load: 1570 lbs
Rated Static Load: 1010 lbs
Speed limit (grease): 11400 RPM
Weight: 0.1 lb

Ningbo Renhe Machinery Bearing Co., LTd is a China bearing manufacturer, please save our email(pauline@ruwhbearing.com) or send us an inquiry!

Description:deep groove ball bearing
Packing:Tube packing or single color box/carton/pallet
Delivery Time:48hours after receipt payment
Payment Terms:L/C,T/T
Capacity:13 million per month
Grease qty:30% as usual
Long life:Reduce replacement frequency and maintenance costs
Noise GradesZ3,Z4
Vibration GradesV3,V4
Application:Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation,  roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts
Features:simple configuration,high speed,less cefficient of friction,less vibration and noise
