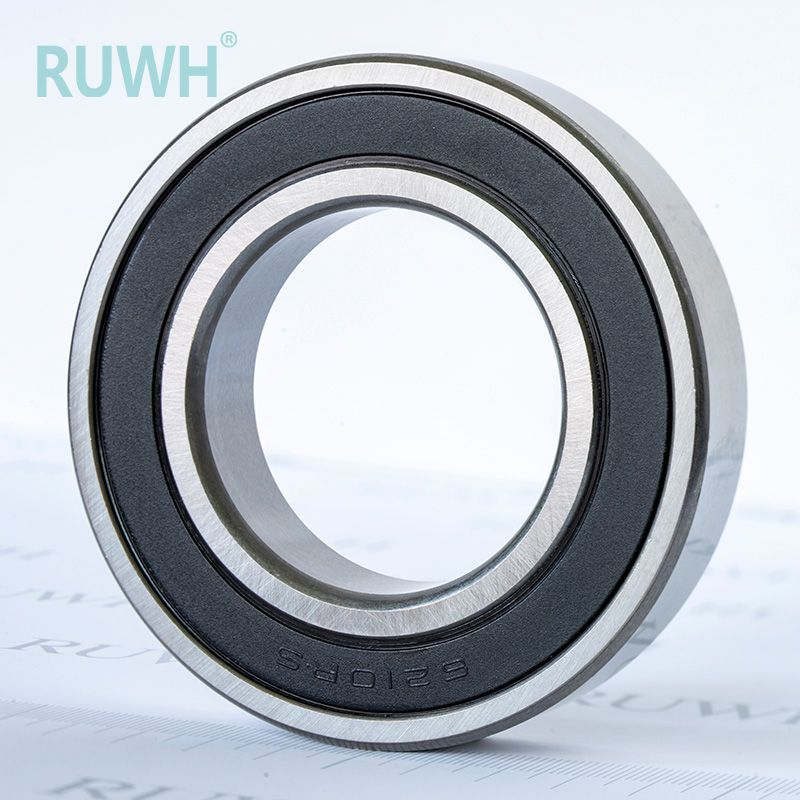

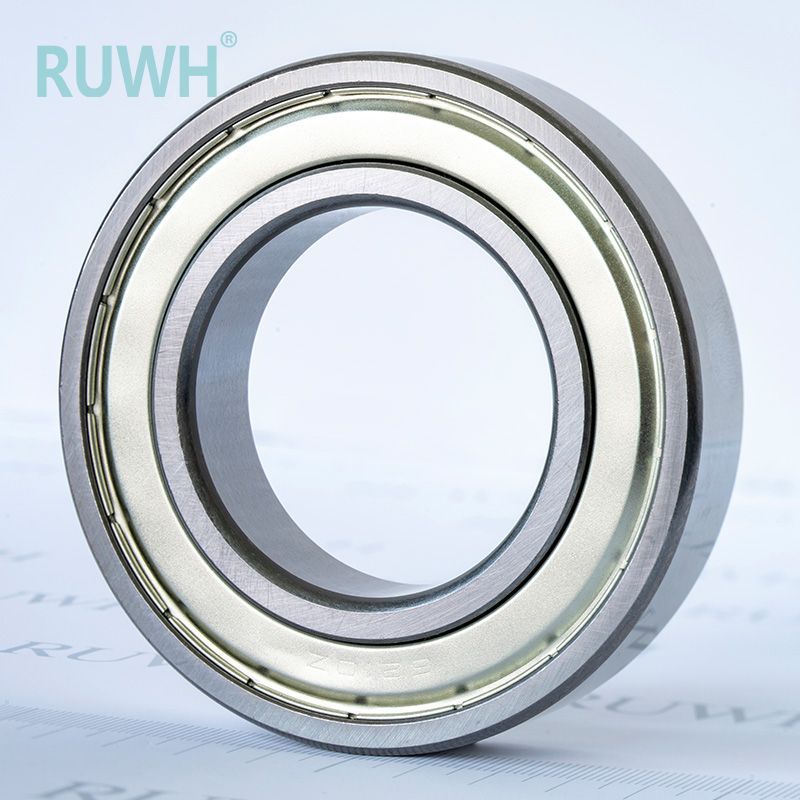

6210 2RS/ZZ/OPEN Bearing

6210 2RS/ZZ/OPEN Bearing

Item No.6210 2RS/ZZ/OPEN Bearing

Uniform Hardness 62 Series Bearing
Clearance:According to client's requirment
Quality:P6 Z3V3, P5 Z4V4

Renhe Deep Groove Ball Bearing Specification

This 6210-2RS ball bearing is a high precision, high quality sealed deep groove 50x90x20 ball bearing manufactured by RUWH in accordance with ABEC 3 accuracy standards. The difference between this 6210-2RS bearing and others is that this bearing is manufactured to ABEC 3 accuracy standards, uses class 10 balls and has an excellent motor quality rating (EMQ). ABEC 3 means that the bearing itself has a micron deviation of -8 microns from its nominal value of 20.000 mm. Almost all ball bearings today are manufactured to the ABEC 1 accuracy standard with a deviation of -10 microns. Simply put, the more accurate a bearing is, the better it will perform in any given application. The Class 10 balls in this bearing are typically only found in ABEC 5 or higher bearings because they have a truer roundness and accuracy. The balls within the bearing share load capacity, so this also increases the operating life compared to the standard grade 25 balls used in other brands. The motor quality rating means that the bearings must operate at extremely low noise levels with minimal or no vibration. To achieve this, the raceways of the 6210-2RS bearings are precision ground to excellent results.

6210-2RS ball bearings have a wide range of applications in industry and automation. They are designed to reduce rotational friction and support loads. The load is evenly distributed over the 25-stage balls, which rotate as the inner ring of the bearing rotates. Seals located on either side of the ball bearing keep the bearing lubricated while keeping unwanted items out. For more information or to get a quote on 6210-2RS bearings, please contact our customer support team and we will be happy to assist you!

6210-2RS Ball Bearing Dimensions

Bearing Size: 6210-2RS
Size(D): 50mm
Size(D): 90mm
Size(B): 20mm
Dynamic load rating. 7900 LBS
Static load rating. 5240 LBS
Ultimate speed (grease): 4600 RPM
Weight: 1.02 LBS

RUWH 6210 2RS Bearing Features

Hot Sale
Suitable For Precision
Low Noise
Stable Quality
High Speed
Water Proof
For Transmission Parts
Efficient Operation
Long-Lasting Silence
Electric Motor Quality
High Temperature Resistance
Uniform Hardness
Wear Resistance
Long-Term Performance
Tube Packing
Single Box Packing
Long Life

RUWH 6210 2RS Bearing Advantage

Emq Quality
100% Fully Auto-Inspection
Devliery In 48hours
11 Million Sets Per Month
All Raw Materials Are Purchased And Controlled By Ruwh
4 Heat Treatment Lines
Automatic Production Line
Stable Raw Material Supplier
5s Management
Iatf16949 Certificate
Production And Inspection In Strict Accordance With The Process
Professional After-Sales
Sufficient Stock
Free Replacement Within 1 Year
Reply Within 48hours If There Is Problem
The Motor Bearing Will Run For 30,000hours
Maintenance Free Solutions

RUWH 6210 2RS Bearing Application

For Automotive
For Household Appliances
For Pumps
For Gearboxes
For Electric Motors & Generators
For Electric Power Tools
For Office Equipments
For Heavy Vehicles
For Motorcycles
For Diy & Garden Tools
For Conveyors
For Lifts
For Sports & Exercise
For Machineries

Deep groove ball bearing production flow chart

Deep groove ball bearing production flow chart

Ordering Instructions for Deep Groove Ball Bearings

Description:deep groove ball bearing
Packing:Tube packing or single color box/carton/pallet
Delivery Time:48hours after receipt payment
Payment Terms:L/C,T/T
Capacity:13 million per month
Grease qty:30% as usual
Long life:Reduce replacement frequency and maintenance costs
Noise GradesZ3,Z4
Vibration GradesV3,V4
Application:Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation,  roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts
Features:simple configuration,high speed,less cefficient of friction,less vibration and noise
