6807 2RS/ZZ/OPEN Bearing

6807 2RS/ZZ/OPEN Bearing

Item No.6807 2RS/ZZ/OPEN Bearing

68 Series Bearing With Water Proof
Dimension:35*47*7mm
Clearance:According to client's requirment
Material:Gcr15
Quality:P6 Z3V3, P5 Z4V4

Renhe Deep Groove Ball 6807 Bearing Specification

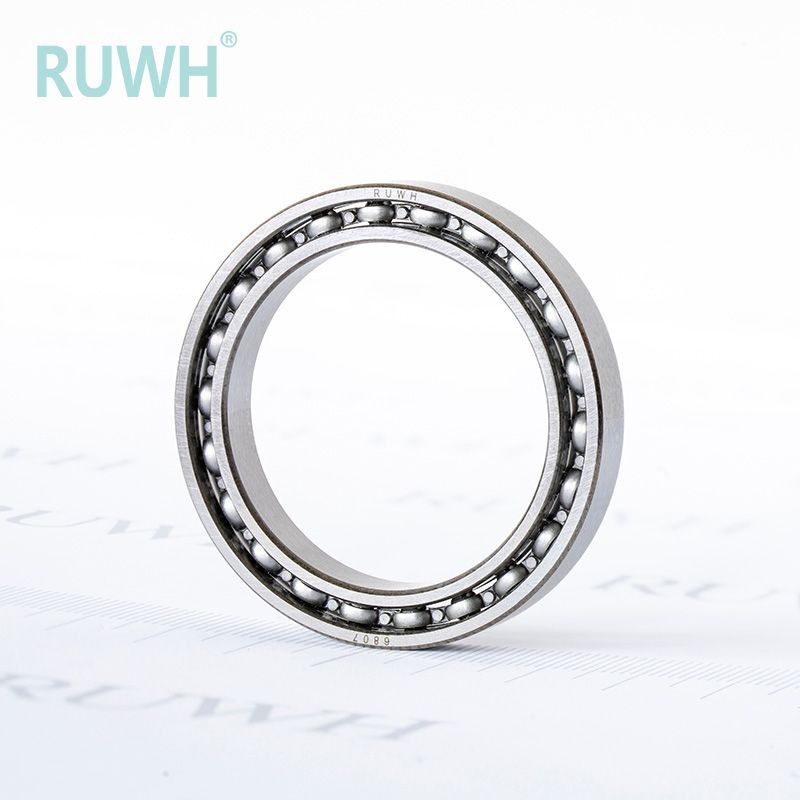

Deep groove ball or single row radial ball bearings are the most widely used bearings. They utilize uninterrupted raceways, making them the best choice for radial loads. This design allows for precise tolerances, even at high operating speeds. This 6807 bearing is a Open Type Thin Section Deep Groove Radial Ball Bearing with a standard radial internal clearance. The bearing's dimensions are 35x47x7.


A 6807 bearing is a relatively small bearing and is commonly used in applications where space is limited. It is suitable for use at high speeds and can operate at high loads. The bearing may be sealed or open, depending on the specific requirements of the application. Sealed bearings have an additional sealing element to protect the bearing from dirt, dust, and other contaminants, while open bearings are exposed to the environment.


Matching: 6807RS, 6807LLU, 6807LLB, 6807DDU, 6807-2NSL, 6807VV, 6807-2RSJ1, 6807EE, 6807-2RU, 61807.2RSR, 6807-NSE

6807 Ball Bearing Dimensions


Bearing Size: 6807
Dimension (D): 35mm
Dimension (D): 47mm
Dimension (B): 7mm
Rated dynamic load: 1100 lbs
Rated Static Load: 900 lbs
Limit speed (grease): 13000 rpm
Limit speed (oil): 16000 rpm
Weight: 0.07 lbs

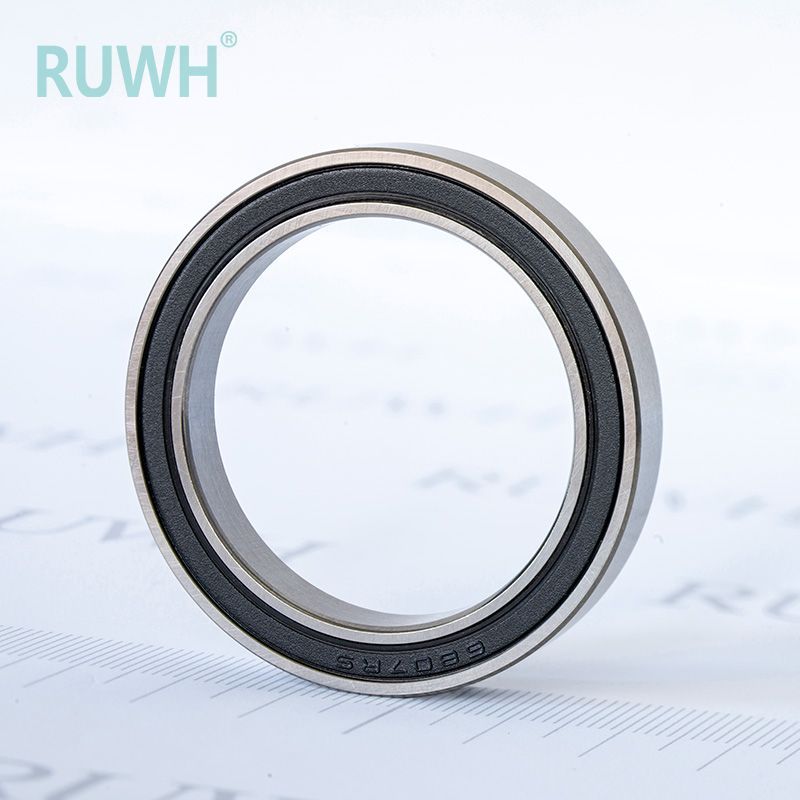

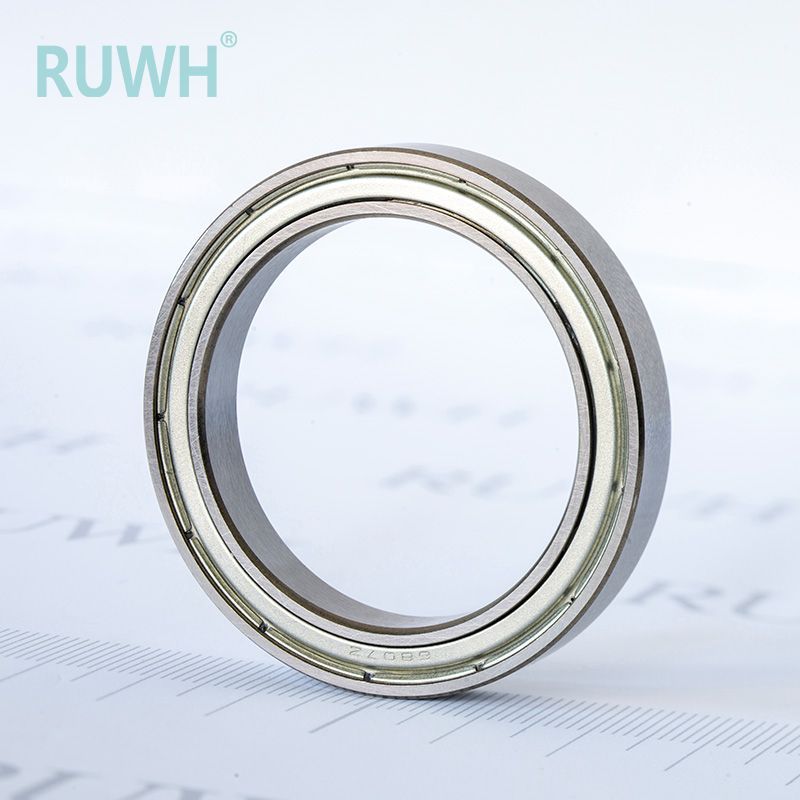

6807-2RS and 6807-ZZ are 35 mm ball bearings that can be found in many applications. 6807-2RS ball bearings have two contact rubber seals on each side of the ball bearing. 6807-ZZ ball bearings have two non-contact metal shields on each side of the ball bearing. If your application requires a 6807 ball bearing with only one seal or shield, you can obtain the ball bearing and remove one of the shields or seals. These 35 mm inch ball bearings are of high quality and will meet the needs of the motor if required.


RUWH 6807 Bearing Features

Full ball system design: higher radial load capacity than similar deep groove ball bearings with cage
Higher impact resistance and stiffness due to higher number of rolling elements
Thin bearings with very thin, square cross-section
Suitable for space-saving radial and axial mounting
Ultra-light series with compact dimensions and low weight
Suitable for radial loads in both directions and light axial loads
Sealing: contact lip seal on both sides made of rubber (2RS) for high sealing effect
If you need this bearing with only one seal and one open face RS design, you can simply remove one of the two seals: as per the instructions.
Good performance as a fixed bearing, but can also be used as a floating bearing, in both directions


Ningbo Renhe Machinery Bearing Co., LTd is a China bearing manufacturer, please save our email(pauline@ruwhbearing.com) or send us an inquiry!

Certification:ITAF16949
Description:deep groove ball bearing
MOQ:3000pcs
Price:Negotiate
Packing:Tube packing or single color box/carton/pallet
Delivery Time:48hours after receipt payment
Payment Terms:L/C,T/T
Capacity:13 million per month
Cage:SPCC
Grease qty:30% as usual
Long life:Reduce replacement frequency and maintenance costs
Noise GradesZ3,Z4
Vibration GradesV3,V4
PrecisionP6(ABEC-3),P5(ABEC-5)
Application:Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation,  roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts
Features:simple configuration,high speed,less cefficient of friction,less vibration and noise
