6900 2RS/ZZ/OPEN Bearing

6900 2RS/ZZ/OPEN Bearing

Item No.6900 2RS/ZZ/OPEN Bearing

Rubber Shielded Skateboard Ball 69 Series Bearings
Dimension:10*22*6mm
Clearance:According to client's requirment
Material:Gcr15
Quality:P6 Z3V3, P5 Z4V4

Renhe Deep Groove Ball 6900 RS Bearing Specification


6900RS sealed ball bearing 10 x 22 x 6 mm a bearing 6900RS miniature ball bearing,6900RS bearing is made of chrome steel,6900RS bearing is enclosed with rubber seals to protect the bearing from dust or any possible contamination,6900RS bearing is self-lubricating bearing,6900RS bearing is lubricated.

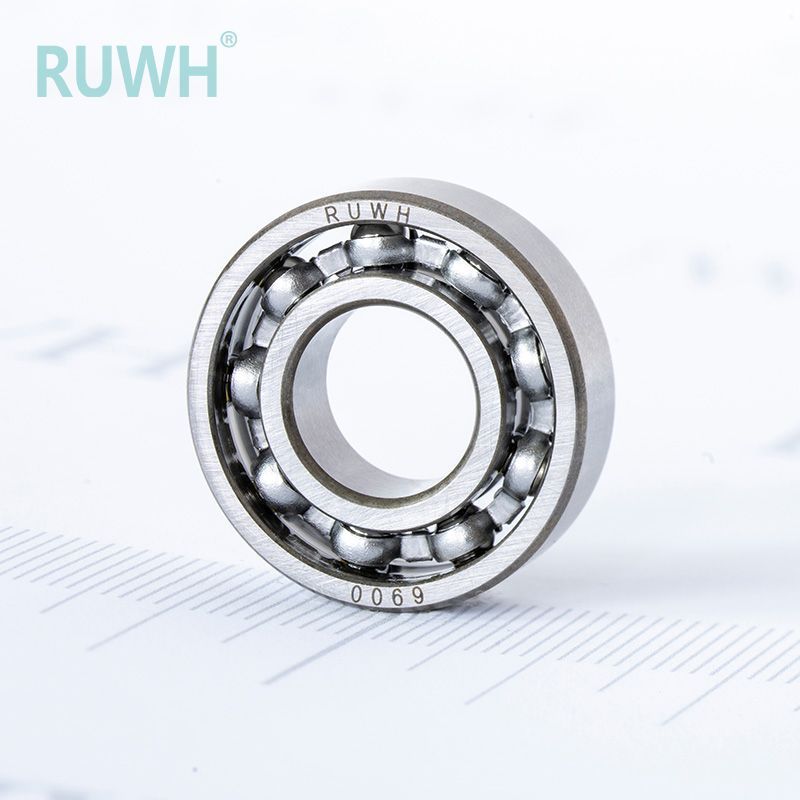

The 6900 is a 10 mm ball bearing used in many rotary and factory automation applications. 6900 deep groove ball bearings are open type bearings. 6900Z ball bearings are single row raceways and single shielded. 6900ZZ ball bearings have single row raceways and are shielded on each side. B6900DDU, 6900DDU, 6900LLU, 6900- 2NSE, 6900H2RS Ball bearings are protected by two rubber seals on each side. 6900 10 mm ball bearings Inner dimensions 10 mm X outer dimensions 22 mm X width 6 mm are an open ball bearing designed for high speeds and high dynamic loads.

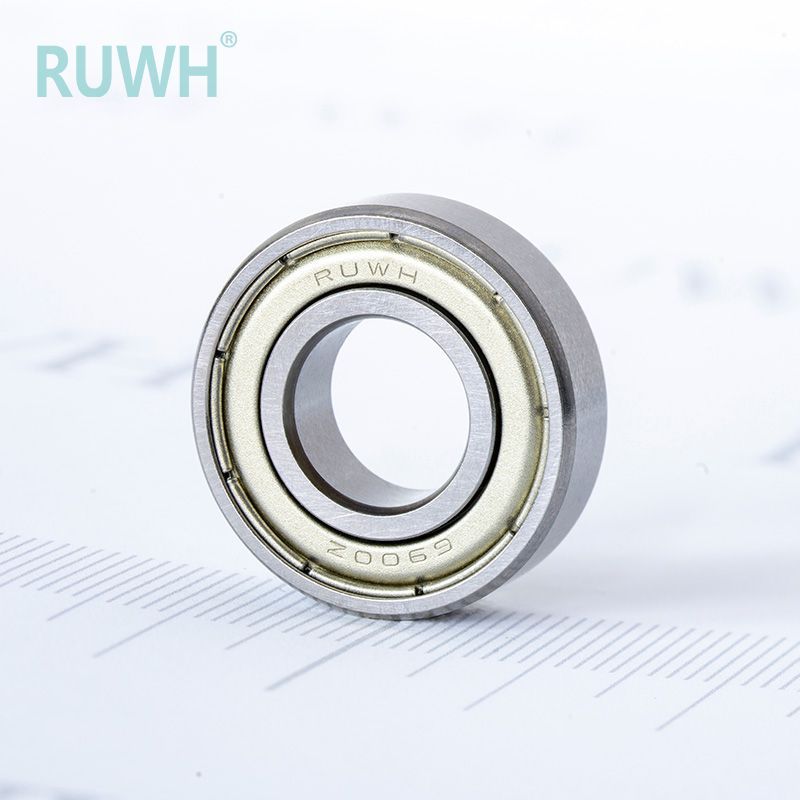

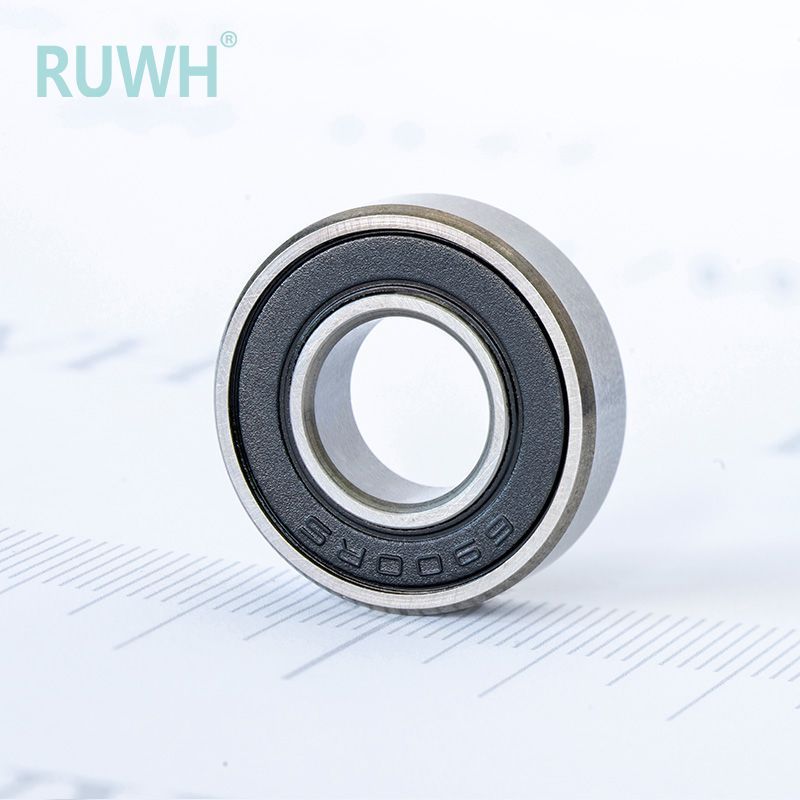

The 6900-2RS and 6900-ZZ are a 10 mm ball bearing that can be found in many applications. 6900-2RS ball bearings have two contact rubber seals on each side of the ball bearing. 6900-ZZ ball bearings have two non-contact metal shields on each side of the ball bearing. If your application requires a 6900 ball bearing with only one seal or shield, you can obtain the ball bearing and remove one of the shields or seals. These 10 mm inch ball bearings are of high quality and can be used to meet the needs of motors if required.

Common applications: Electric motors, gearboxes, motorcycles, agriculture, industry, vehicles, appliances

6900-2RS Ball Bearing Size


Bearing size: 6900-2RS
Dimension (d): 10mm
Dimension(D): 22mm
Dimension (B): 6 mm
Dynamic load rating. 605 LBS
Static load: 280 LBS
Ultimate speed (grease). 22,800 RPM
Weight: 0.02 LBS


Ningbo Renhe Machinery Bearing Co., LTd is a China bearing manufacturer, please save our email(pauline@ruwhbearing.com) or send us an inquiry!

Certification:ITAF16949
Description:deep groove ball bearing
MOQ:3000pcs
Price:Negotiate
Packing:Tube packing or single color box/carton/pallet
Delivery Time:48hours after receipt payment
Payment Terms:L/C,T/T
Capacity:13 million per month
Cage:SPCC
Grease qty:30% as usual
Long life:Reduce replacement frequency and maintenance costs
Noise GradesZ3,Z4
Vibration GradesV3,V4
PrecisionP6(ABEC-3),P5(ABEC-5)
Application:Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation,  roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts
Features:simple configuration,high speed,less cefficient of friction,less vibration and noise


69 Series
