6809 2RS/ZZ/OPEN Bearing

6809 2RS/ZZ/OPEN Bearing

Item No.6809 2RS/ZZ/OPEN Bearing

Electric Motor Quality 68 Series Bearing
Dimension:45*58*7mm
Clearance:According to client's requirment
Material:Gcr15
Quality:P6 Z3V3, P5 Z4V4

Renhe Deep Groove Ball Bearing Specification

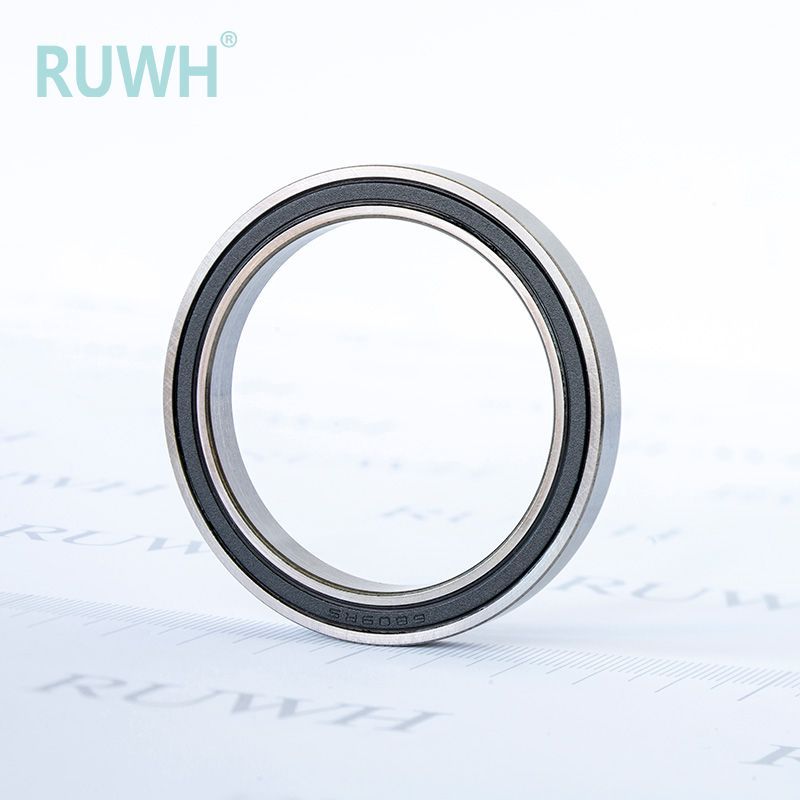

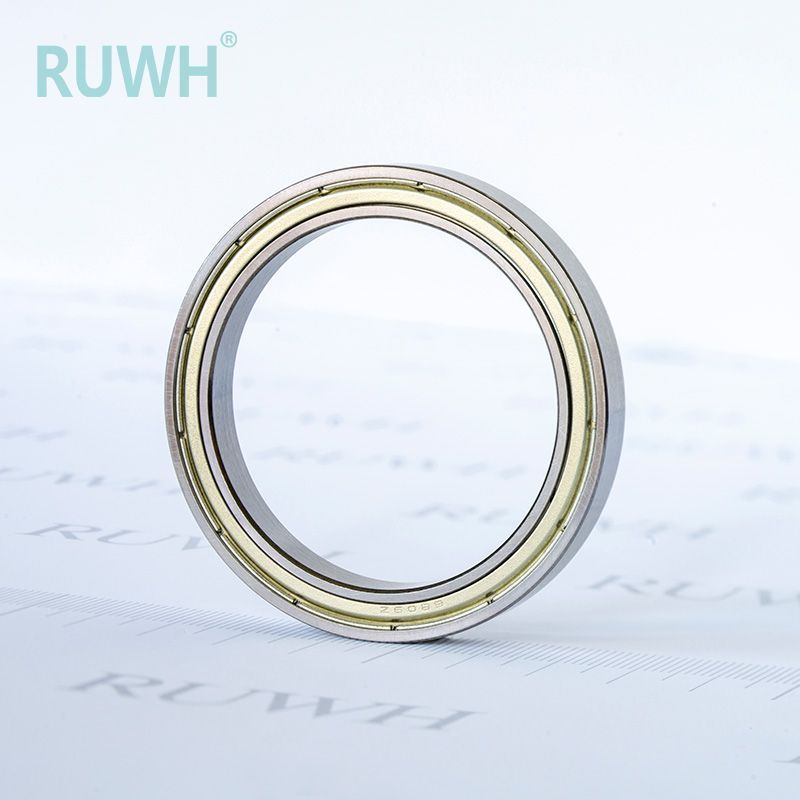

6809-2RS and 6809-ZZ are a 45 mm ball bearing that can be found in many applications. 6809-2RS ball bearings have two contact rubber seals on each side of the ball bearing. 6809-ZZ ball bearings have two non-contact metal shields on each side of the ball bearing. If your application requires a 6809 ball bearing with only one seal or shield, you can obtain the ball bearing and remove one of the shields or seals. These 45 mm inch ball bearings are of high quality and will meet the needs of the motor if required.

6809-2RS Sealed Ball Bearing - 45mm x 58mm x 7mm


6809-2RS sealed ball bearings, classified as thin, double sealed, radial, deep groove ball bearings, 6809-2RS bearings are made of chrome steel with chrome steel balls and steel cage, 6809-2RS bearings are closed with rubber seals to protect the bearings from dust or any possible contamination. The 6809-2RS bearing is sealed and self-lubricating with 45mm inner diameter, 58mm outer diameter and 7mm width, the quality is set to EMQ (motor quality) to ensure high speed, 6809-2RS bearing is lubricated with grease.

6809 Bearing Specifications

Item: 6809-2RS ball bearing
Type: Deep groove radial ball bearing
Cage: Steel
Ball: chrome steel
Radial clearance. C0
Material: chrome steel
Lubrication: Self-lubricating (grease) bearing

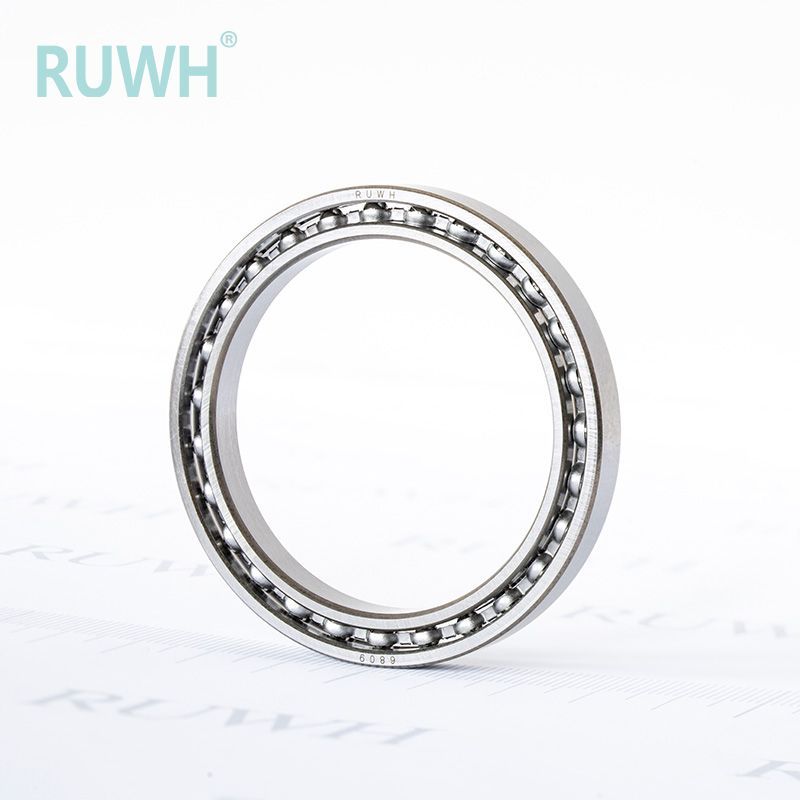

Closure: 2RS/ZZ/OPEN
Size: 45mm x 58mm x 7mm
Inner Diameter (ID). 45mm
Outer Diameter (OD): 58mm
Width/height/width (W/H/B): 7mm
Mass: Motor mass
Dynamic load rating Cr: 5,350 N
Static load rating Cor: 4,900 N
Rated dynamic load: 1,440 lbs
Rated static load: 1,270 lbs
Speed limit (grease): 11,000 RPM
Speed limit (oil): 12,000 RPM
Match#: 6809RS, 6809LLU, 6809LLB, 6809DDU, 6809VV, 61809.2RSJ1, 6809EE, 6809 2RU


Ningbo Renhe Machinery Bearing Co., LTd is a China bearing manufacturer, please save our email(pauline@ruwhbearing.com) or send us an inquiry!

Certification:ITAF16949
Description:deep groove ball bearing
MOQ:3000pcs
Price:Negotiate
Packing:Tube packing or single color box/carton/pallet
Delivery Time:48hours after receipt payment
Payment Terms:L/C,T/T
Capacity:13 million per month
Cage:SPCC
Grease qty:30% as usual
Long life:Reduce replacement frequency and maintenance costs
Noise GradesZ3,Z4
Vibration GradesV3,V4
PrecisionP6(ABEC-3),P5(ABEC-5)
Application:Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation,  roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts
Features:simple configuration,high speed,less cefficient of friction,less vibration and noise
