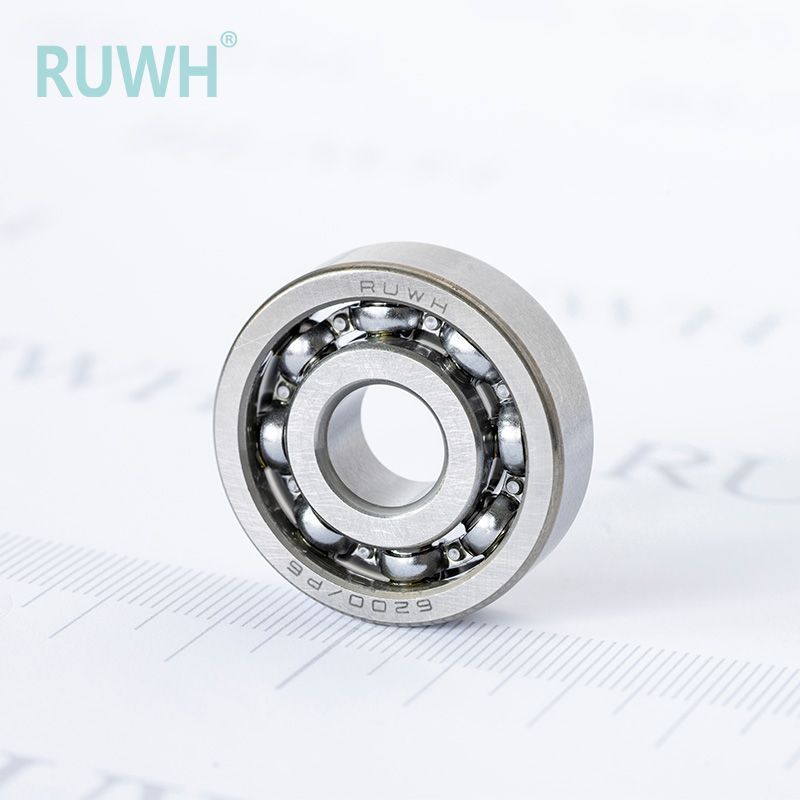

6200 2RS/ZZ/OPEN Bearing

6200 2RS/ZZ/OPEN Bearing

Item No.6200 2RS/ZZ/OPEN Bearing

High Precision Deep Groove Ball Bearing 6200
Dimension:10*30*9mm
Clearance:According to client's requirment
Material:Gcr15
Quality:P6 Z3V3, P5 Z4V4

Renhe Deep Groove Ball Bearing Specification

Deep groove radial ball bearings are suitable for low to medium thrust loads in both load directions. Like the 6000 series, the 6200 series is well suited for low to heavy radial loads and can be configured for a wide range of application speed and running accuracy requirements.

Various tolerance grades (Abec 1-9), internal clearances (C2-C4) and cage designs (J, W, RJ, TW, etc.) are available.

Size: 10*30*9mm

Options: Bearings are available with metal shrouds (ZZ) or rubber seals (2RS).

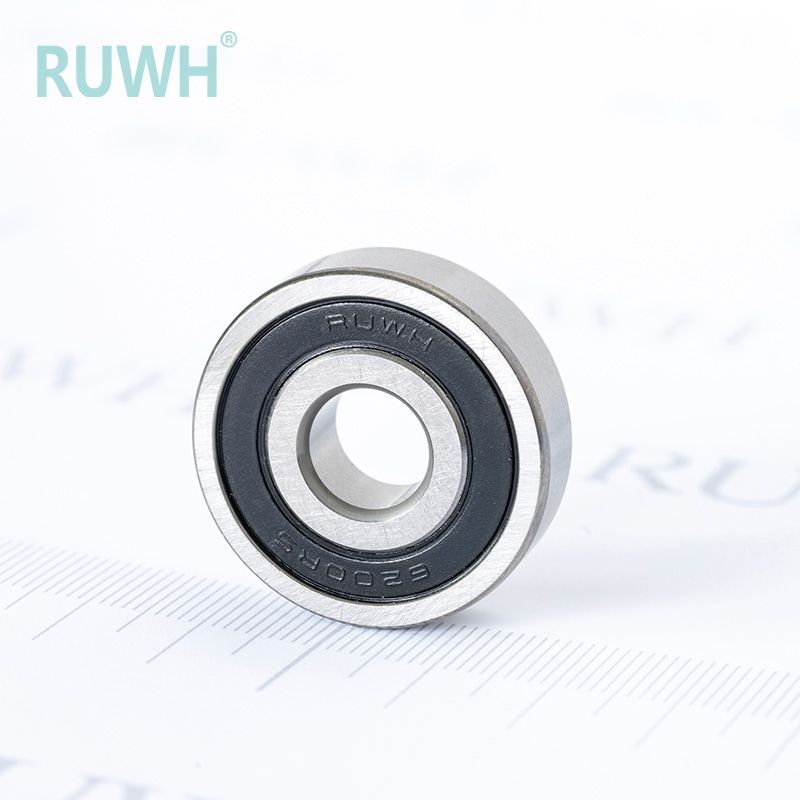

If the selected bearing is equipped with a rubber seal (2RS), it has a molded seal made of nitrile rubber and bonded to a steel insert for added strength. Our sealed bearings have a maximum operating temperature of 240 F. This type of seal is in contact with the inner ring of the bearing to protect it from contaminated environments and is better than bearings equipped with metal shields only.

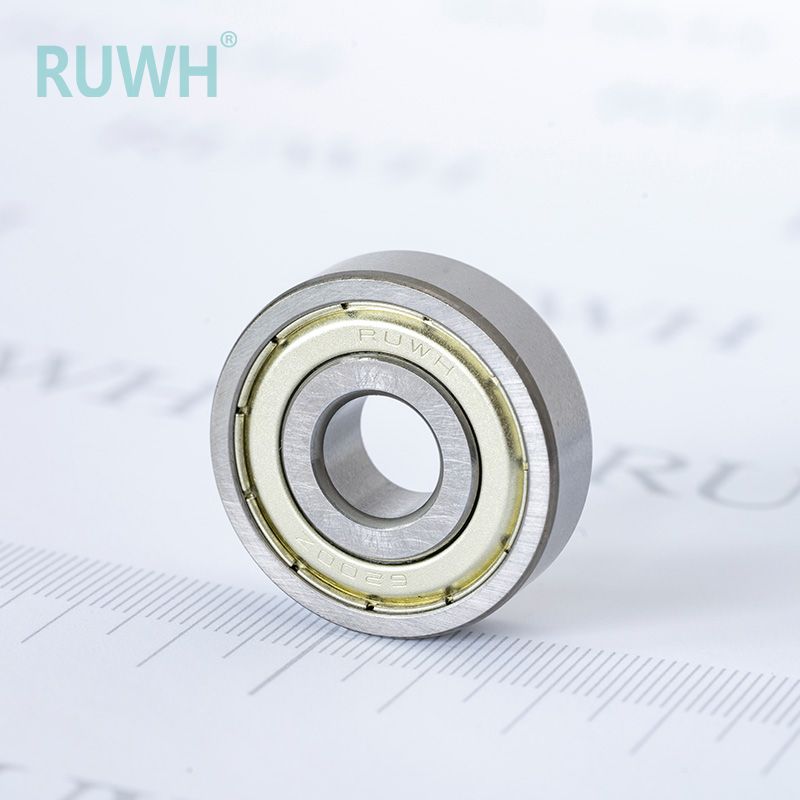

If the selected bearing is equipped with a metal shield (ZZ), it has a non-removable, non-contact steel shield. These shields allow you to run the bearing at higher temperatures and have no effect on torque or speed because the inner ring is not in contact with the shield. The disadvantage of this type of housing is the lack of sealing protection for the outer element.

The bearing is sometimes marked with one of the following marks: 6200-ZZ, 62002Z, 62002Z, 62002Z, 200KDD, 1200FF, 77200, 6200ZZ, 200SFF, 200PP, 77500, 6200ZZ, 6200ZZ, 62002Z, 62002Z, 6200ZZ

The 6200-2RS and 6200-ZZ are a 10 mm ball bearing that can be found in many applications. 6200-2RS ball bearings have two contact rubber seals on each side of the ball bearing. 6200-ZZ ball bearings have two non-contact metal shields on each side of the ball bearing. If your application requires a 6200 ball bearing with only one seal or shield, you can obtain the ball bearing and remove one of the shields or seals. These 10 mm inch ball bearings are of high quality and can meet the needs of the motor if required.

More specifically, 6200 ball bearings are widely used in industrial and automation applications. They are designed to reduce rotational friction and support loads. The load is evenly distributed over the 25-stage balls and as the inner bearing housing rotates, the balls rotate with it. For more information or to get a quote on 6200 bearings, please contact our customer support team and we'll be happy to help you!


Features

Hot Sale

Suitable For Precision

Low Noise

Stable Quality

High Speed

Water Proof

For Transmission Parts

Efficient Operation

Long-Lasting Silence

Electric Motor Quality

High Temperature Resistance

Uniform Hardness

Wear Resistance

Corronsion-Resistant

Long-Term Performance

Tube Packing

Single Box Packing

Long Life


Advantage

Emq Quality

100% Fully Auto-Inspection

Devliery In 48hours

11 Million Sets Per Month

All Raw Materials Are Purchased And Controlled By Ruwh

4 Heat Treatment Lines

Automatic Production Line

Stable Raw Material Supplier

5s Management

Iatf16949 Certificate

Production And Inspection In Strict Accordance With The Process

Professional After-Sales

Sufficient Stock

Warranty

Free Replacement Within 1 Year

Reply Within 48hours If There Is Problem

The Motor Bearing Will Run For 30,000hours

Maintenance Free Solutions


Application

For Automotive

For Household Appliances

For Pumps

For Gearboxes

For Electric Motors & Generators

For Electric Power Tools

For Office Equipments

For Heavy Vehicles

For Motorcycles

For Diy & Garden Tools

For Conveyors

For Lifts

For Sports & Exercise

For Machineries


Deep groove ball bearing production flow chart

Deep groove ball bearing production flow chart

Ordering Instructions for Deep Groove Ball Bearings


Certification:ITAF16949
Description:deep groove ball bearing
MOQ:3000pcs
Price:Negotiate
Packing:Tube packing or single color box/carton/pallet
Delivery Time:48hours after receipt payment
Payment Terms:L/C,T/T
Capacity:13 million per month
Cage:SPCC
Grease qty:30% as usual
Long life:Reduce replacement frequency and maintenance costs
Noise GradesZ3,Z4
Vibration GradesV3,V4
PrecisionP6(ABEC-3),P5(ABEC-5)
Application:Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation,  roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts
Features:simple configuration,high speed,less cefficient of friction,less vibration and noise
