Keywords:
Deep Groove Ball Bearing
| Material: | Chrome Steel |
| Precision Rating | P6 P5 P4 |
| Seals Type | ZZ 2RS OPEN |
| Noise level: | ZV1 ZV2 ZV3 |
| Clearance | C2 C0 C3 C4 C5 |
| Lubricatio | Oil Grease |
| Feature | Long Life High Speed |

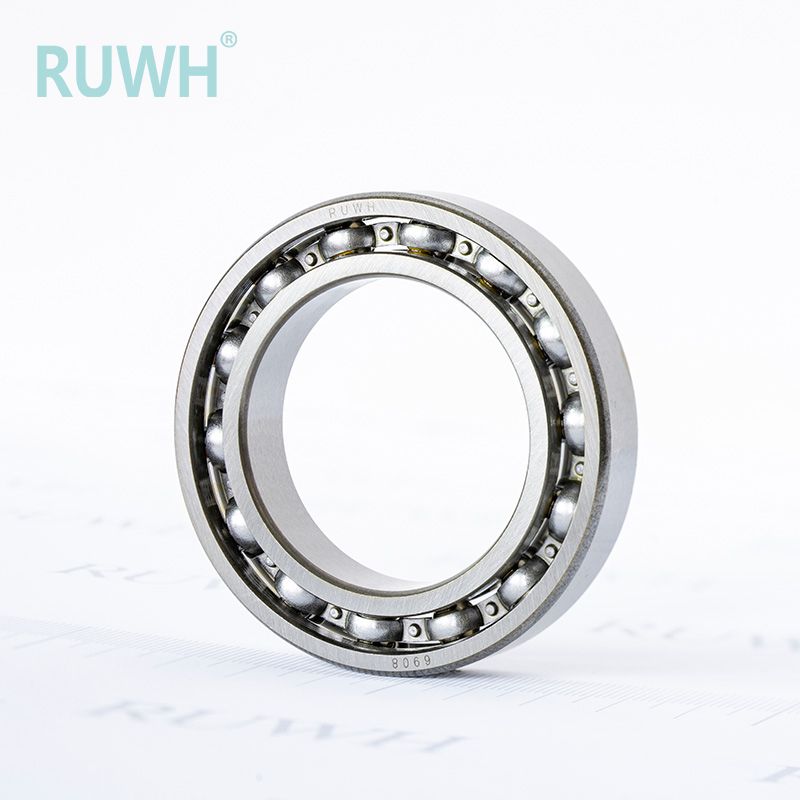

Renhe Deep Groove Ball Bearing Specification
| Item Number | Dimension （mm) | Load Rating | Limiting Speed(rpm) | Weight | ||||||
| Bore | Outer Diameter | Width | Radius | Dynamic | Static | Grease | Oil | （kg） | ||
| d | D | B | rmin | Cr (N) | Cor (N) | Open Z ZZ RZ 2RZ | RS 2RS | Open Z RZ RS | ||
| 695 | 5 | 13 | 4 | 0.2 | 1070 | 420 | 43000 | -- | 50000 | 0.0025 |
| 696 | 6 | 15 | 5 | 0.2 | 1470 | 600 | 40000 | -- | 45000 | 0.0038 |
| 697 | 7 | 17 | 5 | 0.3 | 1940 | 810 | 36000 | -- | 43000 | 0.0052 |
| 698 | 8 | 19 | 6 | 0.3 | 2110 | 950 | 36000 | -- | 43000 | 0.0072 |
| 699 | 9 | 20 | 6 | 0.3 | 2120 | 970 | 34000 | -- | 40000 | 0.0084 |

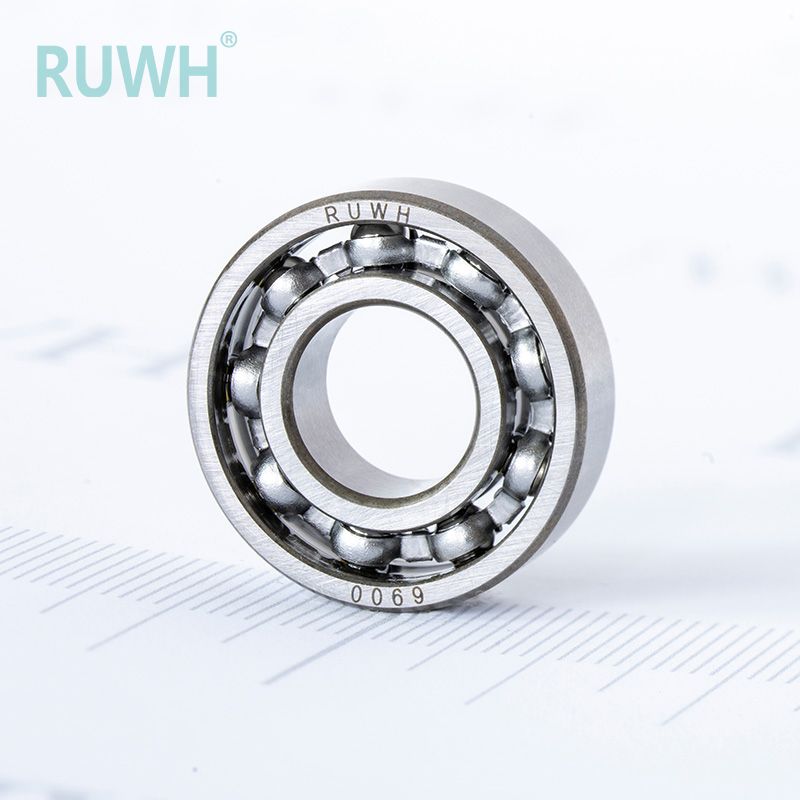

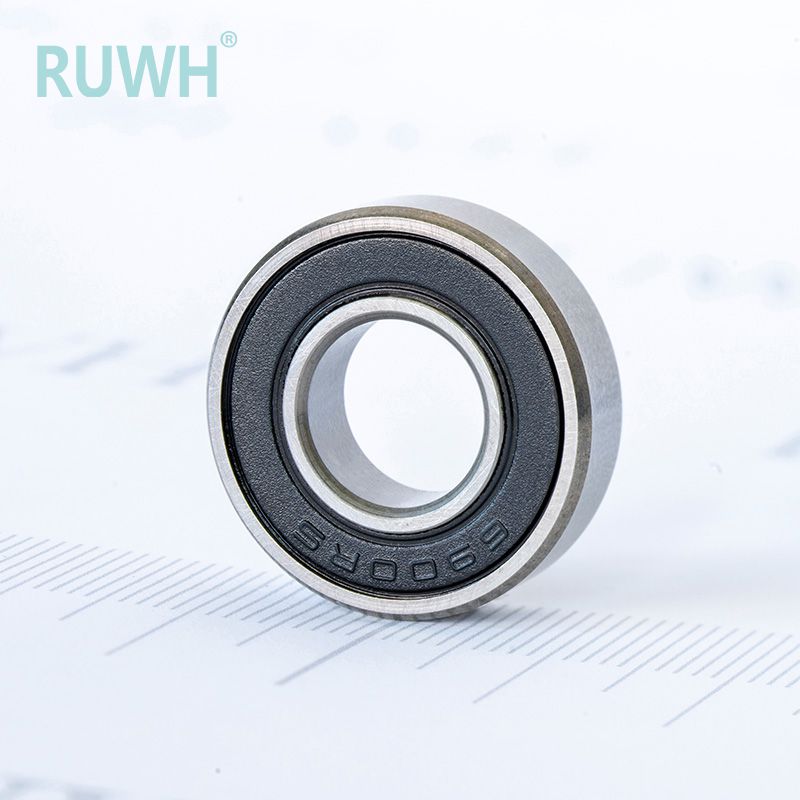

| 6900 | 10 | 22 | 6 | 0.3 | 2690 | 1270 | 32000 | 22000 | 38000 | 0.0090 |

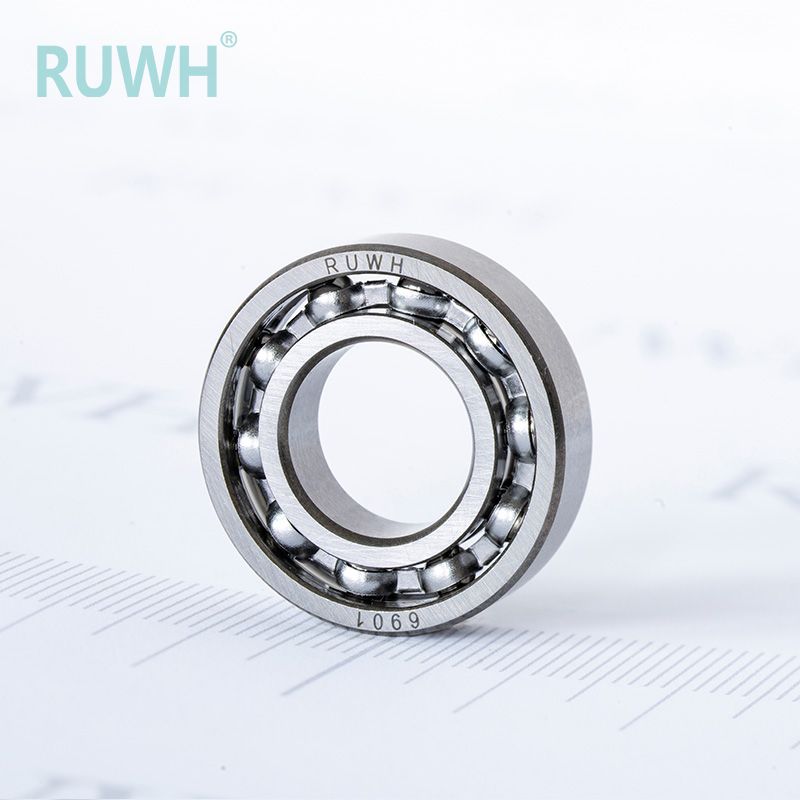

| 6901 | 12 | 24 | 6 | 0.3 | 2900 | 1450 | 30000 | 20000 | 36000 | 0.0100 |

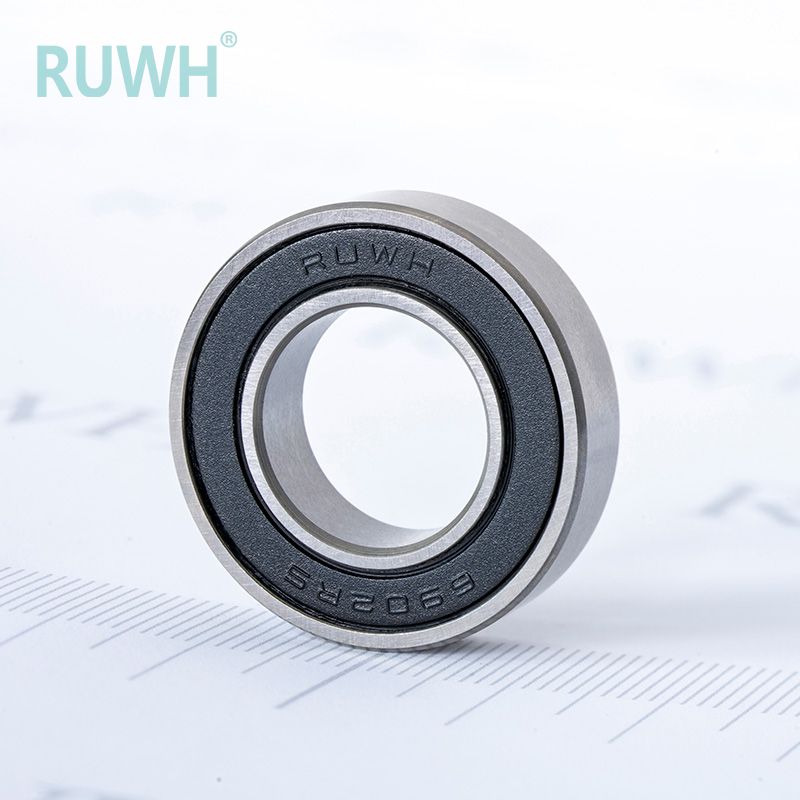

| 6902 | 15 | 28 | 7 | 0.3 | 4620 | 2260 | 26000 | 17000 | 30000 | 0.0150 |

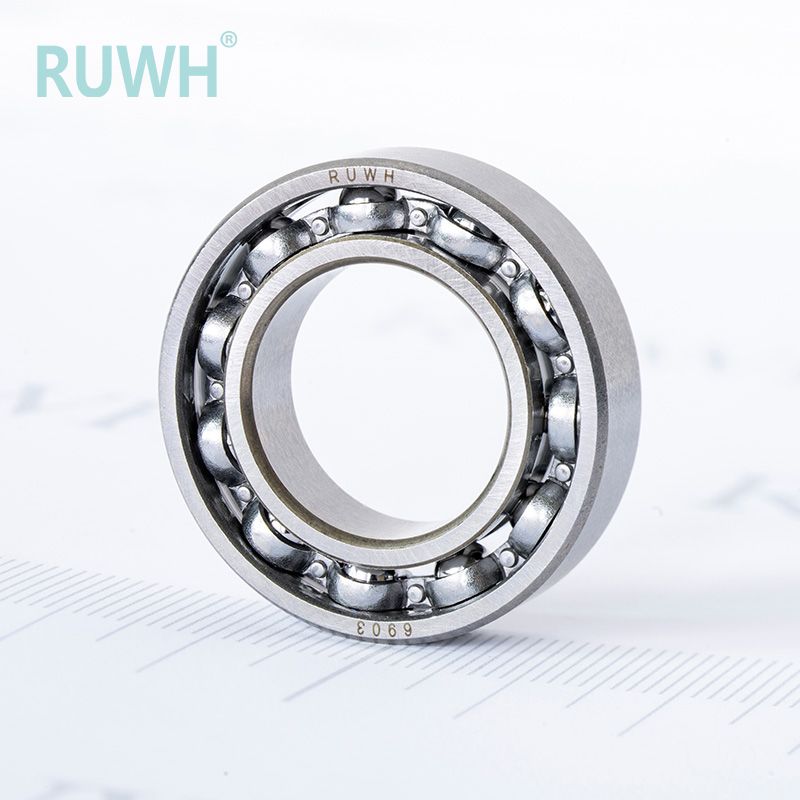

| 6903 | 17 | 30 | 7 | 0.3 | 4600 | 2550 | 24000 | 15000 | 28000 | 0.0170 |

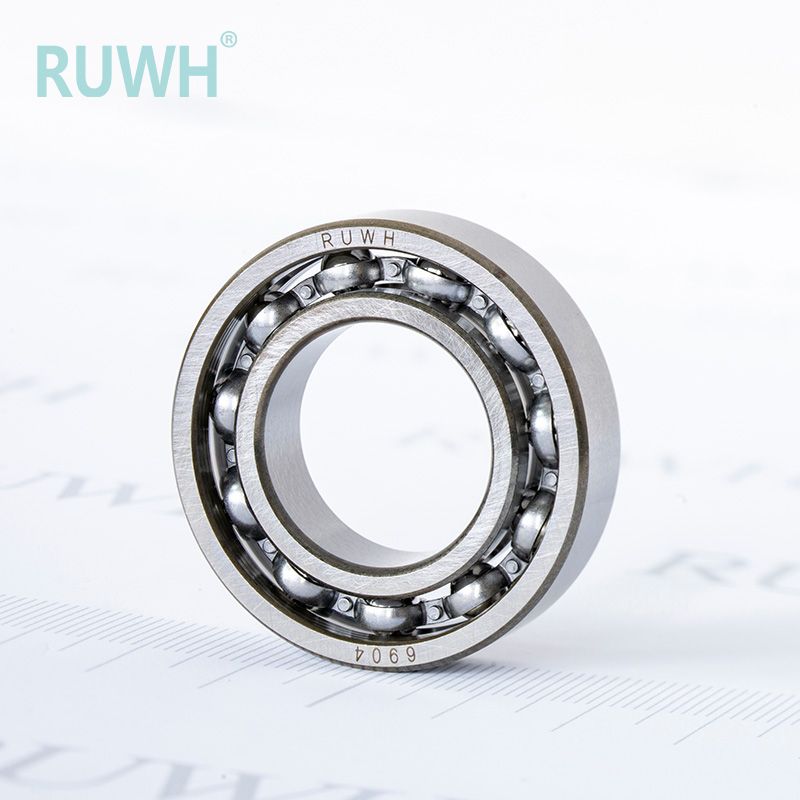

| 6904 | 20 | 37 | 9 | 0.3 | 6380 | 3650 | 19000 | 12000 | 22000 | 0.0370 |
| 6905 | 25 | 42 | 9 | 0.3 | 7000 | 4550 | 16000 | 10000 | 19000 | 0.0420 |

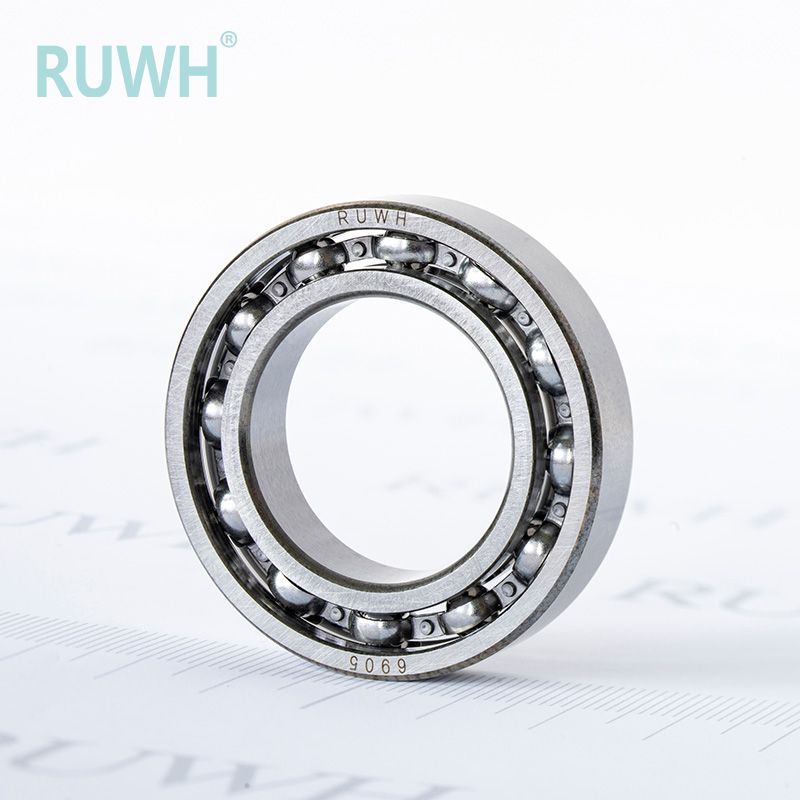

| 6906 | 30 | 47 | 9 | 0.3 | 7200 | 5050 | 14000 | 8500 | 17000 | 0.0520 |

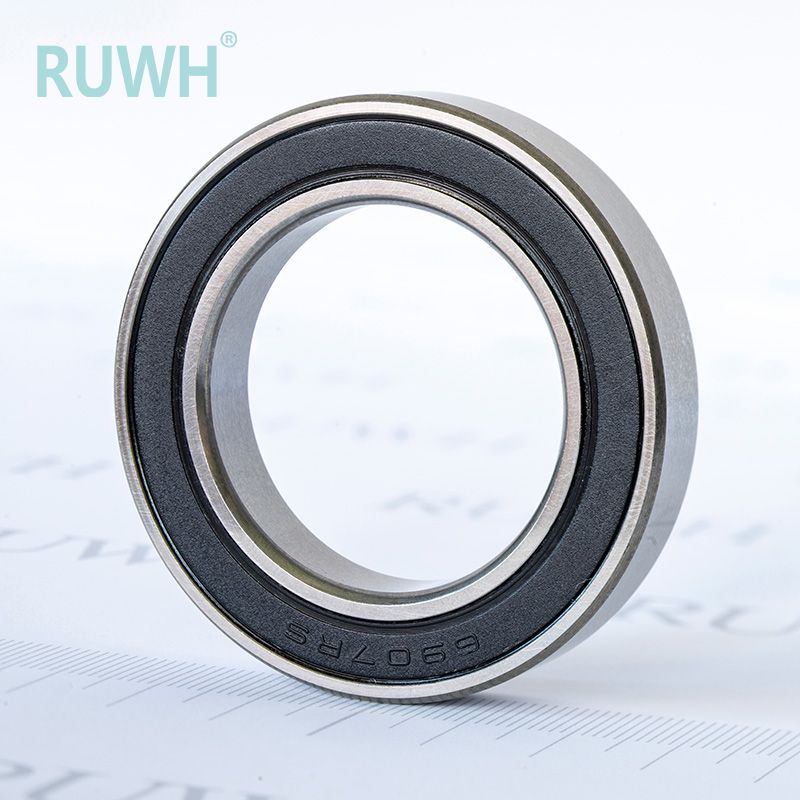

| 6907 | 35 | 55 | 10 | 0.6 | 10370 | 7180 | 12000 | 7500 | 15000 | 0.0750 |
| 6908 | 40 | 62 | 12 | 0.6 | 12100 | 8950 | 11000 | 6300 | 13000 | 0.1120 |

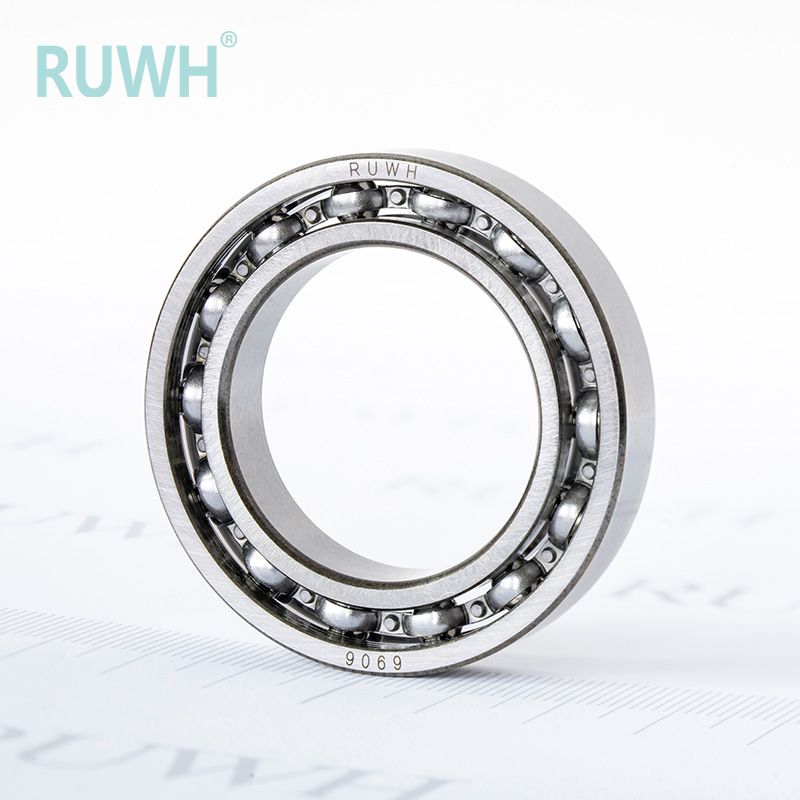

| 6909 | 45 | 68 | 12 | 0.6 | 14100 | 10850 | 9500 | 5600 | 12000 | 0.1260 |

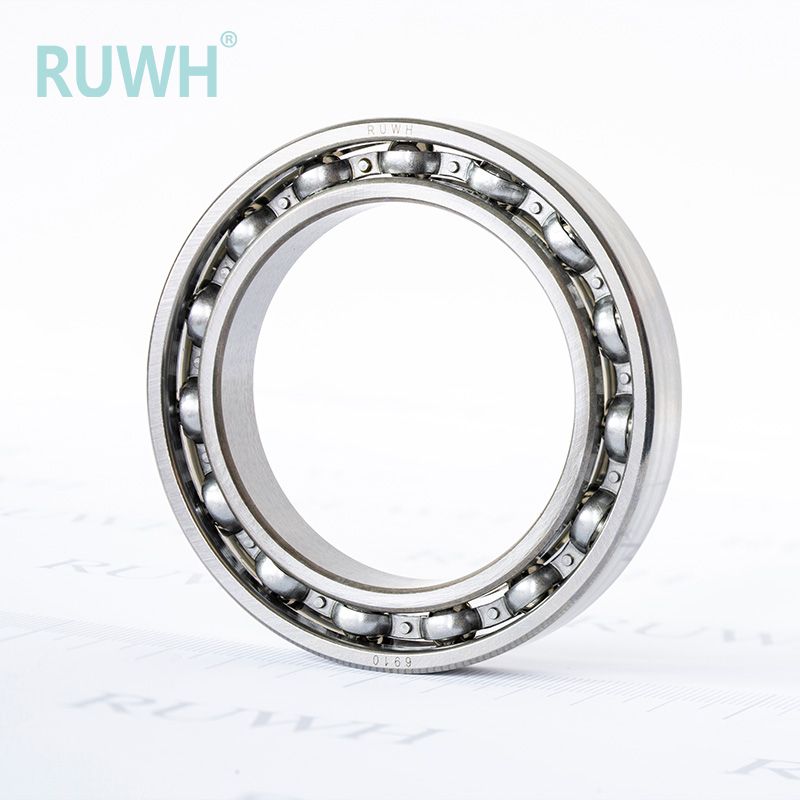

| 6910 | 50 | 72 | 12 | 0.6 | 14500 | 11700 | 9000 | 5300 | 11000 | 0.1350 |
| Certification: | ITAF16949 |
| Description: | deep groove ball bearing |
| MOQ: | 3000pcs |
| Price: | Negotiate |
| Packing: | Tube packing or single color box/carton/pallet |
| Delivery Time: | 48hours after receipt payment |
| Payment Terms: | L/C,T/T |
| Capacity: | 13 million per month |
| Cage: | SPCC |
| Grease qty: | 30% as usual |
| Long life: | Reduce replacement frequency and maintenance costs |
| Noise Grades | Z3,Z4 |
| Vibration Grades | V3,V4 |
| Precision | P6(ABEC-3),P5(ABEC-5) |
| Application: | Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation, roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts |
| Features: | simple configuration,high speed,less cefficient of friction,less vibration and noise |
RUWH 69 Series Bearing Features | Hot Sale |
| Suitable For Precision | |
| Low Noise | |
| Stable Quality | |
| High Speed | |
| Water Proof | |
| For Transmission Parts | |
| Efficient Operation | |
| Long-Lasting Silence | |
| Electric Motor Quality | |
| High Temperature Resistance | |
| Uniform Hardness | |
| Wear Resistance | |
| Corronsion-Resistant | |
| Long-Term Performance | |
| Tube Packing | |
| Single Box Packing | |
| Long Life | |
RUWH 69 Series Bearing Advantage | Emq Quality |
| 100% Fully Auto-Inspection | |
| Devliery In 48hours | |
| 11 Million Sets Per Month | |
| All Raw Materials Are Purchased And Controlled By Ruwh | |
| 4 Heat Treatment Lines | |
| Automatic Production Line | |
| Stable Raw Material Supplier | |
| 5s Management | |
| Iatf16949 Certificate | |
| Production And Inspection In Strict Accordance With The Process | |
| Professional After-Sales | |
| Sufficient Stock | |
| Warranty | |
| Free Replacement Within 1 Year | |
| Reply Within 48hours If There Is Problem | |
| The Motor Bearing Will Run For 30,000hours | |
| Maintenance Free Solutions | |
RUWH 69 Series Bearing Application | For Automotive |
| For Household Appliances | |
| For Pumps | |
| For Gearboxes | |
| For Electric Motors & Generators | |
| For Electric Power Tools | |
| For Office Equipments | |
| For Heavy Vehicles | |
| For Motorcycles | |
| For Diy & Garden Tools | |
| For Conveyors | |
| For Lifts | |
| For Sports & Exercise | |
| For Machineries |
